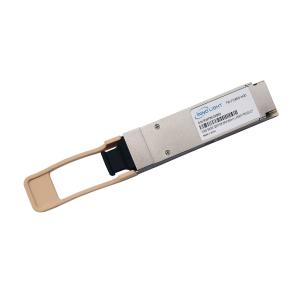

InnoLight QSFP28 100G QSFP28 SR4 Optical Transceiver Module TR-FC85S-N00

  • 1
  • 2

Brand Name : InnoLight

Model Number : TR-FC85S-N00

Certification : RoHS-6

Place of Origin : Malaysia

MOQ : 1pc

Price : Price is negotiable

Payment Terms : T/T, Paypal、Credit card

Supply Ability : 5000pcs/month

Delivery Time : 3-5 working day

Packaging Details : Anti-boxes，Standard packaging

Data rate : 100Gb/s

Form-Factor : QSFP28

Center Wavelength : 850nm

Transmission Distance : 100m

Connector : MTP/MPO

Lasers : VCSEL-based

Maximum power consumption : 3.5W

Temperature : -40℃ to 85℃

Contact Now

InnoLight QSFP28 100G QSFP28 SR4 Optical Transceiver Module TR-FC85S-N00

Fiber Type Single mode
Weight 0.06kg
Warranty 1 Year
Tx power -8.4 to + 2.4 dBm
Rx sensitivity -10.3 to +2.4 dBm
Extinction Ratio 2.0dB
Single Power Supply
3.3V
Applications
Rack to Rack, Data Center

Features of QSFP28 100G
  • 4 independent full-duplex channels

  • Up to 28Gb/s data rate per channel

  • QSFP28 MSA compliant
  • Compliant to IEEE 802.3bm 100GBASE SR4
  • Up to 100m OM4 MMF transmission
  • Operating case temperature: 0 to 70oC
  • Single 3.3V power supply
  • Maximum power consumption 3.5W
  • MTP/MPO optical connector
  • RoHS-6 compliant

Applications of QSFP28 100G
  • Rack to Rack
  • Data Center
  • Infiniband QDR, DDR and SDR
  • 100G Ethernet

General Description of QSFP28 100G

The QSFP28 100G TR-FC85S-N00 is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28 100G) optical module.

It provides increased port density and total system cost savings. The QSFP28 100G full-duplex optical module offers 4 independent transmit and receive channels,

each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.

Functional Description of QSFP28 100G
This product converts parallel electrical input signals into parallel optical signals, by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array.
The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels.
All input data signals are differential and internally terminated.
The receiver module converts parallel optical input signals via a photo detector array into parallel electrical output signals.
The receiver module outputs electrical signals are also voltage compatible with Common Mode Logic (CML) levels.
All data signals are differential and support a data rates up to 25Gb/s per channel.

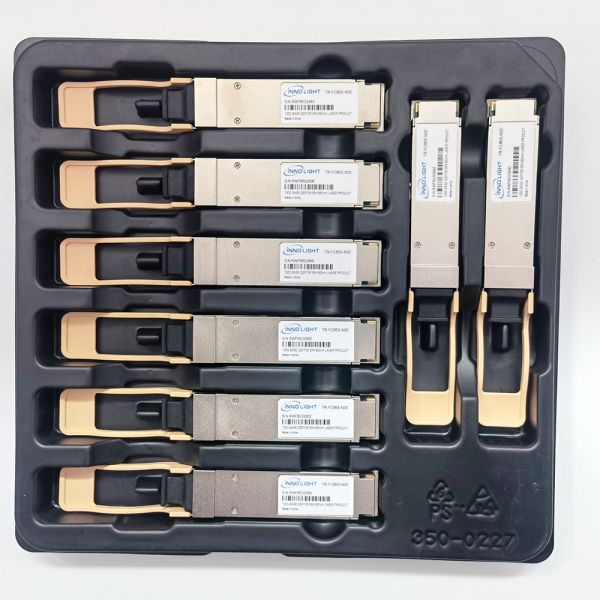

InnoLight QSFP28 100G QSFP28 SR4 Optical Transceiver Module TR-FC85S-N00

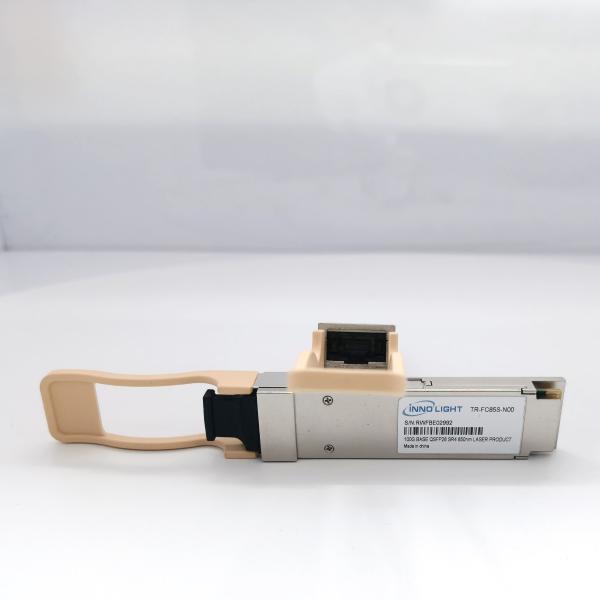

InnoLight QSFP28 100G QSFP28 SR4 Optical Transceiver Module TR-FC85S-N00

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of QSFP28 100G TR-FC85S-N00?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT): -5 to 85°C(23 to 185°F)

Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)

Storage temperature range: -40 to +85°C(-40 to 185°F)

Q4. What payment terms do you accept?
A4. T/T, Paypal,Credit card.

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
