TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight

Product Categories
TOPSTAR TECHNOLOGY INDUSTRIAL CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

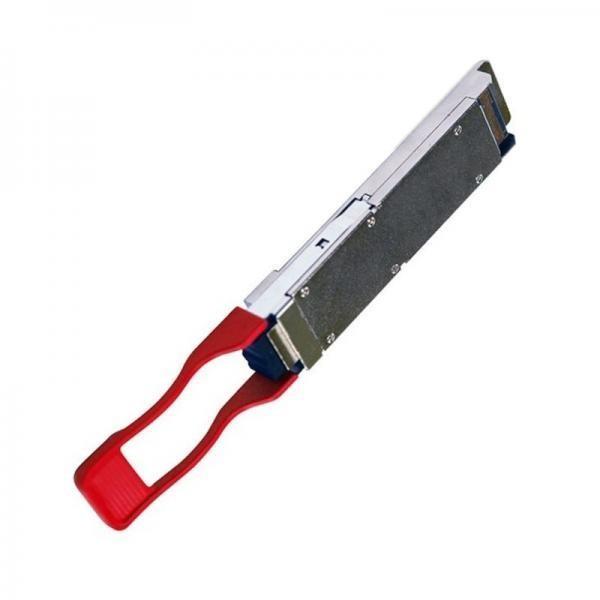

TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight

  • 1
  • 2

Brand Name : InnoLight

Model Number : TR-FC13D-N00

Certification : RoHS-6

Place of Origin : Malaysia

MOQ : 1pc

Price : Price is negotiable

Payment Terms : T/T, Paypal、Credit card

Supply Ability : 5000pcs/month

Delivery Time : 3-5 working day

Packaging Details : Anti-boxes，Standard packaging

Data rate : 100Gb/s

Form-Factor : QSFP28

Center Wavelength : 1296-1309nm

Transmission Distance : 25km

Connector : LC

Lasers : EML

power : 3.3V

Operating case temperature : 0~70℃

Contact Now

InnoLight 100G QSFP28 ER4 Lite Optical Transceiver TR-FC13D-N00

Fiber Type Single mode
Weight 0.06kg
Warranty 1 Year
Tx power -2.5 to + 6.5 dBm
Rx sensitivity -15.65 to -3.5 dBm
Extinction Ratio 2.0dB
Max Power Consumption
3.5W
Applications 100GBASE-ER4 Ethernet Links

Features of TR-FC13D-N00 QSFP28 100G

  • Hot pluggable QSFP28 MSA form factor

  • Compliant to IEEE 802.3ba 100GBASE-ER4

  • Up to 25km reach for G.652 SMF without FEC

  • Single +3.3V power supply

  • Operating case temperature: 0~70oC

  • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

  • Receiver: 4x25Gb/s APD ROSA

  • 4x28G Electrical Serial Interface (CEI-28G-VSR)

  • Maximum power consumption 4.5W

  • Duplex LC receptacle  RoHS-6 compliant

Applications of TR-FC13D-N00 QSFP28 100G
  • 100GBASE-ER4 Ethernet Links

  • Infiniband QDR and DDR interconnects

  • Client-side 100G Telecom connections

General Description of TR-FC13D-N00 QSFP28 100G

The QSFP28 100G TR-FC13D-N00 is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-ER4 Lite standard.

The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.

Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

Functional Description of TR-FC13D-N00 QSFP28 100G
This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-ER4 Lite standard.
The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.
Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight
TR-FC13D-N00 100G QSFP28 ER4 Lite Optical Transceiver InnoLight

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of QSFP28 100G TR-FC13D-N00?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT): -5 to 85°C(23 to 185°F)

Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)

Storage temperature range: -40 to +85°C(-40 to 185°F)

Q4. What payment terms do you accept?
A4. T/T, Paypal,Credit card.

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
