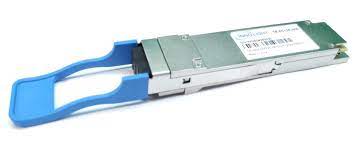

CWDM4 InnoLight 100G QSFP28 Module 10km Optical Transceiver TR-FC13X-N00

  • 1
  • 2

Brand Name : InnoLight

Model Number : TR-FC13X-N00

Certification : RoHS-6

Place of Origin : Malaysia

MOQ : 1pc

Price : Price is negotiable

Payment Terms : T/T, Paypal、Credit card

Supply Ability : 5000pcs/month

Delivery Time : 3-5 working day

Packaging Details : Anti-boxes，Standard packaging

Data rate : 100Gb/s

Form-Factor : QSFP28

Center Wavelength : 1296-1309nm

Transmission Distance : 10km

Connector : LC

Lasers : DFB

Maximum power consumption : 3.5W

Operating case temperature : 0~70℃

Contact Now

InnoLight 100Gb/s QSFP28 eCWDM4 10km Optical Transceiver TR-FC13X-N00

Fiber Type Single mode
Weight 0.06kg
Warranty 1 Year
Tx power -6.5 to + 2.5 dBm
Rx sensitivity -13 to -2.5 dBm
Extinction Ratio 3.5dB
Power consumption
4.5W
Applications

Data Center, 100G Ethernet

Features of TR-FC13X-N00 QSFP28 100G

  • Compliant to QSFP28 Extended CWDM4 (eCWDM4) MSA

  • Four CWDM lanes MUX/DEMUX design

  • Supports 103.1Gb/s aggregate bit rate

  • Up to 10km transmission on single mode fiber (SMF) with RS-FEC

  • Operating case temperature: 0 to 70oC

  • 4x25G electrical interface (OIF CEI-28G-VSR)

  • Maximum power consumption 3.5W

  • LC duplex connector

  • RoHS compliant

Applications of TR-FC13X-N00 QSFP28 100G
  • Data Center

  • 100G Ethernet

  • 100G Campus Link

  • Enterprise networking

General Description of TR-FC13X-N00 QSFP28 100G

The QSFP28 100G TR-FC13X-N00 is a transceiver module designed for low cost 10km optical communication applications.

The module converts 4 inputs channels (ch) of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission.

Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

Functional Description of TR-FC13X-N00 QSFP28 100G
The QSFP28 100G TR-FC13X-N00 converts the 4-channel 25Gb/s electrical input data into a CDR at transmitter side and then driven those 4-channel 25Gb/s electrical signal into CWDM optical signals (light),
by a driven 4- wavelength Distributed Feedback Laser (DFB) array. The light is combined by the MUX parts as a 100Gb/s data, propagating out of the transmitter module from the SMF.
The receiver module accepts the 100Gb/s CWDM optical signals input, and de-multiplexes it into 4 individual 25Gb/s channels with different wavelength.
Each wavelength light is collected by a discrete photo diode, and then outputted as electric data after amplified by a TIA and a post amplifier and a CDR at receiver side.
CWDM4 InnoLight 100G QSFP28 Module 10km Optical Transceiver TR-FC13X-N00
CWDM4 InnoLight 100G QSFP28 Module 10km Optical Transceiver TR-FC13X-N00

FAQ

Q1. Are your Optical Transceivers original?

A1.Yes, all our optical transceivers are guaranteed 100% original!

Q2.How do you guarantee the quality of SFP?

A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.

Q3. What is the operating temperature range of QSFP28 100G TR-FC13X-N00?

A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)

Extended temperature range(EXT): -5 to 85°C(23 to 185°F)

Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)

Storage temperature range: -40 to +85°C(-40 to 185°F)

Q4. What payment terms do you accept?
A4. T/T, Paypal,Credit card.

Q5. What are the trade terms?

A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)

Payment term: Western Union, T/T, Alipay, Escow, Money Gram

Warranty: 1 Year
